Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Payment & Shipping Terms:
|Name:||Cattle Yard Panels||Znic Coating:||40-80g/m2|
|Panel Size:||1.6m×2.1m, 1.7m×2.1m, 1.8m×2.1m, 2m×2.1m||Vertical Pipe:||Square Tube 50×50, 40×40, Thickness: 1.6/2.0mm|
|Horizonal Pipe:||Round Pipe Ø32mm Oval Pipe:30×60mm, 40×80mm Square Pipe:40×40mm, 50×50mm||Horizontal Rails:||3~7|
horse yard panels,
sheep and goat panels

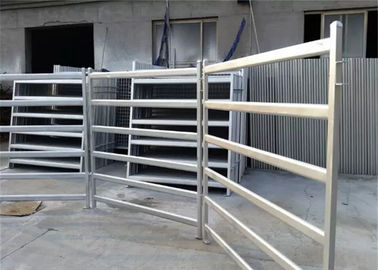

Portable cattle yard panels 6 rails oval tube galvanized or powder coated
Livestock panels can be used as a portable or permanent fencing solution for livestock.The panels are perfect for uneven or steep terrain and are made out of heavy duty hot dipped galvanized pipe, Full welds pipes to make sure panels are stronger to face any impact from cattle or horse.
|Pipe style||Round pipe||Oval pipe||Square pipe|
|Material||Hot galvanized steel pipe|
|Height×Width||1.6m×2.1m, 1.7m×2.1m, 1.8m×2.1m, 2m×2.1m|
|Vertical pipe||Square tube 50×50, 40×40, thickness: 1.6/2.0mm|
Round pipe Ø32mm
Oval pipe:30×60mm, 40×80mm
Square pipe:40×40mm, 50×50mm
|Surface treatment||Galvanized or PVC coated|
|Welding||Bars and post brackets are fully welded, each weld point is protected with paint spraying|
In steel pallet or in bulk
1.Livestock Protection: no sharp edge, very smooth welding spot finishment
2.Cost-effective: give your corral years of service and minimal maintenance at a low initial cost.
3.Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel more stronger; heavy duty and anti-broken; high zinc or PVC coated make the fence durable.
4.Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
5.Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations.And it benefit grassland protection.
It is widely used in cattle, goat, deer, and pig. It is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, highway and environments.
