Hebei Dunqiang Hardware Mesh Co Ltd
Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Payment & Shipping Terms:
|Surface Treament:||Galvanized / Pvc Coated||Pipe Type:||Round Pipe Square Pipe Oval Tube.|
|Flat Iron Size:||30x4mm||Round Tube:||38mm 40mm 42mm|
|Panel Length:||2.0M 2.2M 2.4M 3.0M 3.6M||Rail No:||5 Rail Or 6 Rail In Middle|
|Bracket:||2 Or 3||Weight:||18KG --26KG|
horse yard panels,
sheep and goat panels
Cattle Yard Panel Used For Livestock Farm 6 Rail Oval Tube 40X80MM Pipe

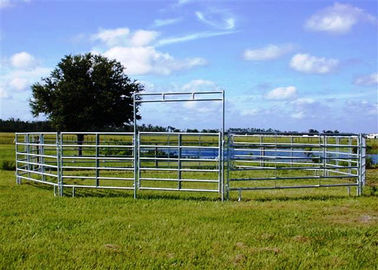

Corral panels is usually called cattle panel, horse panel, livestock panel etc.
It is fabricated with welded hot dip galvanized pipes for the use of fencing livestock, such us cattle, cow,
bull, calves, sheep, goat, hoggery.
Easy to assemble and light weight for easy handling, Metal corp cattle panels are manufactured from high
strength steel Our Cattle Yard Panel are selled very well in Australian and New Zealand. USA Market.
|Pipe style||Round pipe||Oval pipe||Square pipe|
|Material||Hot galvanized steel pipe|
|Height×Width||1.6m×2.1m, 1.7m×2.1m, 1.8m×2.1m, 2m×2.1m|
|Vertical pipe||Square tube 50×50, 40×40, thickness: 1.6/2.0mm|
Round pipe Ø32mm
Oval pipe:30×60mm, 40×80mm
Square pipe:40×40mm, 50×50mm
|Surface treatment||Galvanized or PVC coated|
|Welding||Bars and post brackets are fully welded, each weld point is protected with paint spraying|
|Packing||In steel pallet or in bulk|

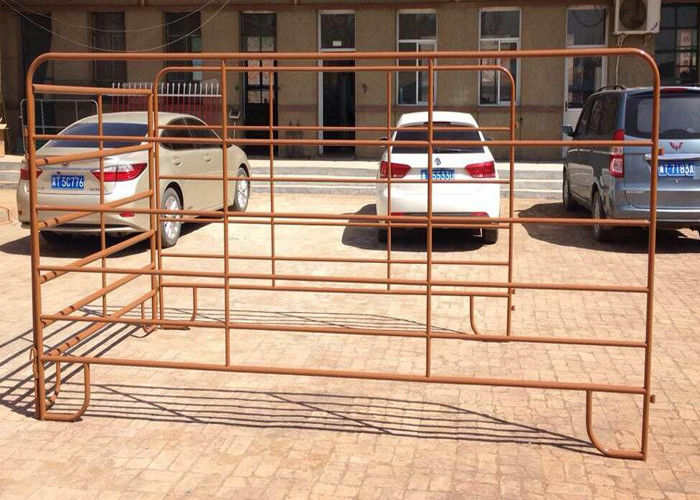

Features of sheep Yard panels:
1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.
With welded top caps and foot plates, water and dust proof
Welded lugs for easy connection.The lugs are welded for all four sides, very durable and safe.
Footplate on the panel,can cement the panels on the ground by nails.
2xjoining pins are supplied for each panel
Easily assembled & disassembled
Contact Person: han
