Hebei Dunqiang Hardware Mesh Co Ltd
Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Product Details:
Payment & Shipping Terms:
|
| Size: | 1.1 *2m Or 1.1*3m | Vetical Pipe: | RHS 50x50x1.6mm |
|---|---|---|---|
| Horizonal Pipe: | Oval Pipe 80x40mm,1.6mm Thickness | Bar Rails: | 6 Bar Rails |
| Assessories: | With Lugs,caps And Pins. | Name: | Portable Yard Panels |
| Color And Size: | Can Be Customized | ||
| High Light: | horse yard panels,sheep and goat panels |
||

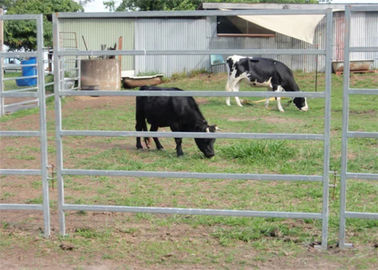

Heavy duty 1.8*2.1m cattle 8 yard panels galvanized or powder coated
Description:
1. Material of new type livestock horse/cattle sheep (goat) cow farm metal panels:
hot-dipped galvanized pipe,including:round pipe,Oval pipe,Square pipe,RHS…
2. Process:
Firstly,we prepared the pipe,then put the pipe on the welded shaping machine,the pipes are galvanized,welded the pipe together,then make the spot smoothing,then silver painted.
Specification:
| Sheep/Goat panels | |
| size | 1.1m height,2m or 3m length |
| Vertical pipe | RHS 50x50x1.6mm |
| Horizonal pipes | Oval pipe 80x40mm,1.6mm thickness |
| bars/rails | 6 bar/rails |
| Assessories | with lugs,caps and pins. |
| cow panels(economical) | |
| Size | 1.8m height,2.1m or 2.4m length |
| Vertical pipe | RHS 40X40X1.5mm or round pipe 40x1.5mm |
| Horizonal pipes | Oval pipe 80x40x1.6mm |
| Bars/Rails | 6 bars/rails |
| Assessories | With lugs,caps and pins |
| Cattle panels(Heavy duty) | |
| Size | 1.5m or1.8m height,2.4m or 3m length |
| Vertical pipe | RHS 50X50X2mm or round pipe 60x2mm |
| Horizonal pipes | Oval pipe 80x40x2mm |
| Bars/Rails | 6 bars/rails |
| Assessories | With lugs,caps and pins |
| Horse yard panels | |
| Size | 1.8m height,2.1m or 3m length |
| Vertical pipe | RHS 50X50X1.6mm OR round pipe50x1.6mm |
| Horizonal pipe |
Three types(round,RHS,oval) 1)Round pipe:32x1.6mm,42x1.6mm 2) Square pipe:40x40x1.6mm,50x50x1.6mm 3) Oval pipe:30x60x1.6mm,40x80x1.6mm |
| Bars/Rails | 6 bars/rails |
| Assessories | With lugs,caps and pins |
Feature:
.Feature of new type livestock horse/cattle/sheep (goat) cow farm metal fence panels:
It is simple in structure; Easy maintenance;Short installation period; Less weight; Easy for transport; Good ventilation.
4.Advantages of our new type livestock horse/cattle/goat cow metal farm fence panels:
A Farm fence can stand against fierce striking of cattle, horse,goats,sheep…
B Durable, Lifetime can reach to twenty years. Easy maintenance
C Farm fence is light, Easy to transport and install, Ventilates diaphanous
D Knotted wire mesh offers high strength and tensile strength
E Good pressure resistance, Corrosion resistance and weather resistance
F Anti-oxidizing property
Application:
The standard specification of horse panelsConnects to any other brand of panel with no special connectors or wire needed.
horse panel. Designed with safety, usability and functionality in mind. This is the biggest selling horse panel in the USA and is now selling world wide as it is recognised as a stand out in horse and rider safety.
Used in raising the animals, specially the cattle, the cow, the horse, the sheep etc.
J-Legs increase portability and help keep panel on top of ground in wet or boggy conditions
Single piece vertical stays through drilled horizontal rails for extra strength,
Chain connectors offer increased versatility and safety by eliminating foot traps.
