Hebei Dunqiang Hardware Mesh Co Ltd
Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Product Details:
Payment & Shipping Terms:
|
| Materials: | Q195 Steel | Surface Treatment: | PVC Coated Or Galvanized |
|---|---|---|---|
| Mesh Size: | 76.2mm X 12.7mm | Fence Post: | 60x60mm X1.5mm 80x80mm |
| Wire Diameter: | 4mm . 5mm | Panel Height: | 1.8Meter 2.0Meter 2.2Meter |
| Panel Width: | 2.2Meter 2.4Meter 2.5 Meter | ||
| High Light: | anti climb fence panels,security mesh fence panels |
||

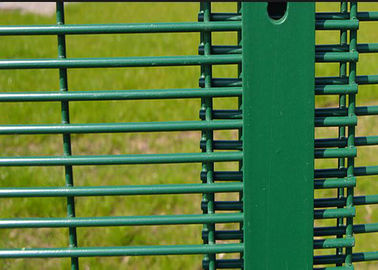

Green 358 Security Mesh Fencing 80X80MM Post 2.1X2.5Meter For Road Security

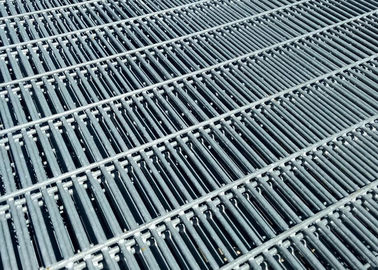

358 mesh panel size
Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating or
PVC powder painting. It provides additional protection and increases the potential life span.
Color: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing
with slotted clamp bars and M8 diameter bolts.
Fence posts
Material: high grade steel for maximum strength and rigidity.
Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder
.
Colors: Green RAL 6005, or Black RAL 9005.
Post cap: metal caps or plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
| Anti Climb Fence | |||||
| Fence Height(m) | Panel Size(mm) | Post Size(mm) | Post Height(mm) | Inters- 1 clamp | Corners-2 clamp |
| 2.0 | 2007 × 2515 | 60×60×2.5 | 2700 | 7 | 14 |
| 2.4 | 2400 × 2515 | 60×60×2.5 | 3100 | 9 | 18 |
| 3.0 | 2997 × 2515 | 80×80×2.5 | 3800 | 11 | 22 |
| 3.3 | 3302 × 2515 | 80×80×2.5 | 4200 | 12 | 24 |
| 3.6 | 3607 × 2515 | 100×60×3 | 4500 | 13 | 26 |
| 3.6 | 3607 × 2515 | 100×100×3 | 4500 | 13 | 26 |
| 4.2 | 4204 × 2515 | 100×100×4 | 5200 | 15 | 30 |
| 4.5 | 4496 × 2515 | 100×100×5 | 5500 | 16 | 32 |
| 5.2 | 5207 × 2515 | 120×120×5 | 6200 | 18 | 36 |
Anti Climb Fence Post
| post | 62mm*83mm*3mm |
| Round post | outside diameter:80mm*120mm*3mm |
| Rectangular post | 60mm*80mm*3mm,60mm*120mm*3mm |
| Post length | on request(normal 2.3mm-4mm) |
| Material | square steel pipe,round steel pipe,C type steel |
| Finishied | hot dipped galvanized,pvc coated |
| Polyester painting color | any RAL color (dark green,black,ect.) |
