Hebei Dunqiang Hardware Mesh Co Ltd
Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Height*Width: | 2007*2515 Mm |
|---|---|---|---|
| O/A Length: | 2700 Mm | Color: | Green Or As Your Need |
| Opening: | 12.7*76.2(3"*1/2") Mm | Size: | Can Be Customized |
| High Light: | high security fence,security mesh fence panels |
||

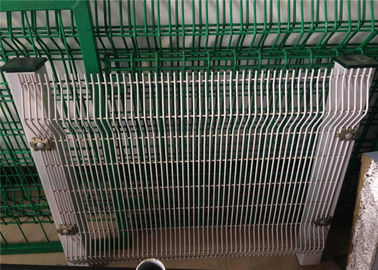

Anti-cutting steel airport perimeter 358 security mesh welded wire mesh panels
Description:
358 mesh – as known airport fence , prison fence , is a high security mesh system widely used on high security installations such as prisons and military sites. Its has small apertures making it extremely difficult to cut the wires and near impossible to climb
Specification:
specification for 358 Security System
| MESH | PANELS | POST | ||||
| Wire | Opening | Height*Width | Section | O/A Length | Total Number of Fixings | |
| mm | mm | mm | mm | mm | Inters-1 Clamp Bar | Comers-2 Clamp Bar |
| 4 | 12.7*76.2(3"*1/2") | 2007*2515 | 60*60*2.5 | 2700 | 7 | 14 |
| 4 | 12.7*76.2(3"*1/2") | 2004*2515 | 60*60*2.5 | 3100 | 9 | 18 |
| 4 | 12.7*76.2(3"*1/2") | 2997*2515 | 80*80*2.5 | 3800 | 11 | 22 |
| 4 | 12.7*76.2(3"*1/2") | 3302*2515 | 80*80*2.5 | 4200 | 12 | 24 |
| 4 | 12.7*76.2(3"*1/2") | 3607*2515 | 100*60*3 | 4500 | 13 | 26 |
| 4 | 12.7*76.2(3"*1/2") | 3607*2515 | 100*100*3 | 4500 | 13 | 26 |
specification for 358 Maximum Security System
| MESH | PANELS | POST | ||||
| Wire | Opening | Height*Width | Section | O/A Length | Total Number of Fixings | |
| mm | mm | mm | mm | mm | Inters-1 Clamp Bar | Comers-2 Clamp Bar |
| 4 | 12.7*76.2(3"*1/2") | 4204*2515 | 100*100*4 | 5200 | 15 | 30 |
| 4 | 12.7*76.2(3"*1/2") | 4496*2515 | 100*100*5 | 5500 | 16 | 32 |
| 4 | 12.7*76.2(3"*1/2") | 5207*2515 | 120*120*5 | 6200 | 18 | 36 |
The surface treatment
1)Hot dipped galvanized
Hot-dip galvanizing is the process of dipping fabricated steel in a bath of molten zinc to
form a tightly-bonded alloy coating that provides superior corrosion protection to steel.
Advantages of Hot Dip Galvanizing
*More cost effective for long term
*Long service life
*Low maintenance
*Corrosion resistant - a protective coat of armor
*Less inspection required on job sites
*Self healing (scratches and cuts in coating)
2)Electro-galvanized and Powder coated
Electric galvanizing takes place before manufacture the product. This generally results in a better appearance.
Powder coating is a dry finishing method in which electrically charged particles of pigmented resins are
sprayedonto a product, makes the product become colorful. We can do powder coated based on RAL color card.
Advantages of Electro-galvanized and Powder coated
*Economics
*Safety
*Environmental
*Saves money
*Elegant appearance
Feature:
Application:
