Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Product Details:
Payment & Shipping Terms:
|
Materials: | Galvanized Steel Pipe | Surface Treatment: | Hot Galvanized |
---|---|---|---|
Panel Size: | 2.1*2.4m ,2.1*2.5m ,2.5*3.0m And Etc | Wire Diameter: | 3.0mm-5.0mm |
Mesh Opening: | 50x50mm,50x100mm,75x150mm,100x200mm | Frame OD: | 30mm,32mm,38mm,40mm And Etc |
Frame Thicknes: | 1.5mm,1.6mm,2.0mm And Etc | Feature: | Easily Assembled, Eco Friendly, Waterproof |
Feet: | Metal Feet | ||
High Light: | temporary fence panels,security fence panels |

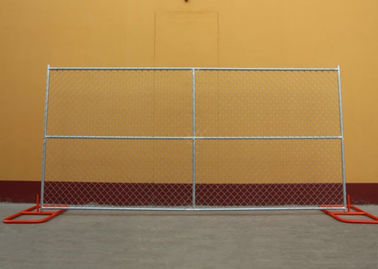

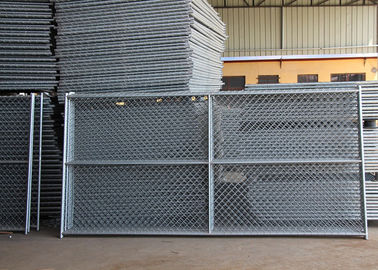

Cross Brace Chain Link Temporary Fence I Hot Galvanized I Metal Feet
Description

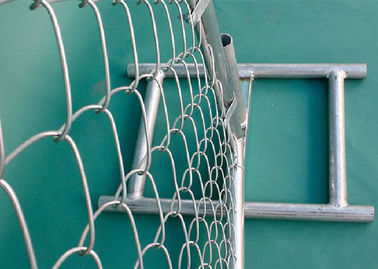

Chain Link Temporary fence is also known as Temporary fencing, temporary fence panels, portable fence, Temp fence,temp fencing and mobile fence.It is consist of chain link panel, round tube frame, plastic feet, stays and clamps.This kind of fence has a superior structure, the mobility and environmental suitability is very good.
Specification:
Material | low carbon steel wire, Q195 |
carbon steel pipe, Q235 |
|
AU Standard Specification |
Wire diameter:4.0mm Mesh opening:58x58mm,60mm*60mm,50mm*50mm Frame pipe:32mm O.D.33.4mmO,D Pipe thickness:2.0mm--3.0mm HXL:2.1x2.4m |
Surface finish (Hot dipped galvanized) |
Wire zinc coating About 200g/m2(28 micron) Pipe zinc coating About 300g/m2(42 micron) |
Fence base | Hot dipped galvanized,sizes are suit to pipe diameter. |
Blow moulded plastic concrete feet | 600x220x150mm,customized colors |
Brace pole | Also available, usually one support leg for four fence panels |
Package | On metal pallet |
Chain link fence features:
1) It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
2) Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle, while being strong and robust at the same time;
3) The feet are removable which makes transportation and storage much easier and more efficient
Construction chain link fence productive process:
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh --- Pre hot galvanized pipes welded—polish the welds—paint anti-rust epoxy—spray sliver powder coat on each welds—stacking—packaging
