Hebei Dunqiang Hardware Mesh Co Ltd
Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Product Details:
Payment & Shipping Terms:
|
| Surface Treatment: | PVC Coated Or Galvanized | Mesh Size: | 50X150mm 50X200MM |
|---|---|---|---|
| Mesh Diameter: | 8mm 6mm 8mm 6mm 5mm 6mm | Panel Height: | 1030mm 1230mm 1530mm 1830mm |
| Panel Width: | 2000mm 2200mm 2400mm | Peach Post: | 50X70MM 70X100mm |
| High Light: | metal wire mesh fence,steel mesh fencing |
||

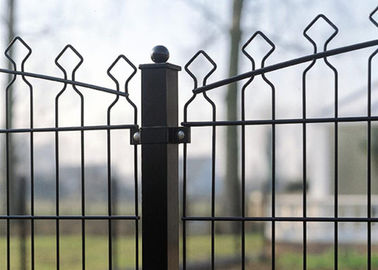

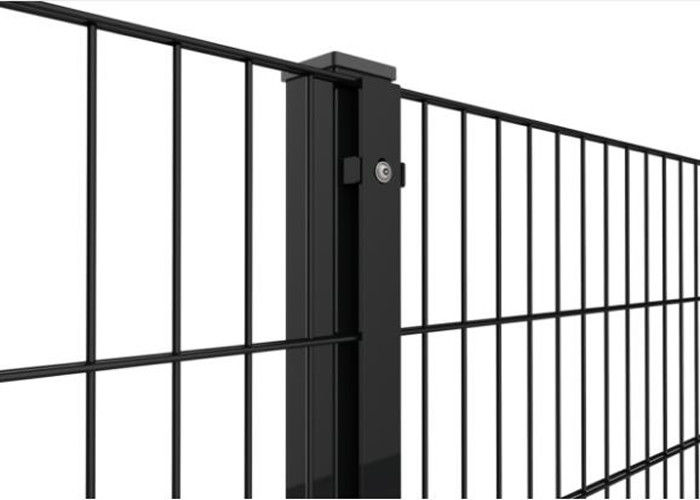

Pvc coated twin wire Double rod welded wire 868 fence panel Mesh size 50X200MM With 50MM Square Post
868 twin wire mesh offers the same mesh panel as the 656, but with even greater strength by incorporating
double 8mm horizontal with the single 6mm vertical wires.
868 Fence Panel Material:
Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powders Primer,
and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly.
The thickness of powder coating is 100-120 microns usually. The choose wire diameters are
6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.
| Double Wire Fence Panel | |||||
| Height x Width (Panel) mm |
Mesh Size mm. |
Wire Diameter | Post of Height mm |
||
| Wire Dia mm |
Wire Dia mm |
Wire Dia mm |
|||
| 630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1100 |
| 830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1300 |
| 1030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1500 |
| 1230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1700 |
| 1430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 1900 |
| 1630*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2100 |
| 1830*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2400 |
| 2030*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2600 |
| 2230*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 2800 |
| 2430*2500 | 50*200 | 8*2 + 6 | 6*2 + 5 | 6*2 + 4 | 3000 |
Double Wire Welded Fence Post Size
| Square post | |
| Size | 40*60mm 60*60mm 80*80mm |
| Thickness | 1.2mm 1.5mm 2.0mm |
| Height | 1.8m 2.1m 2.3m 2.5m or as your request |
| Round post | |
| Diameter | 38mm 40mm 42mm 48mm 60mm |
| Size | 1.2mm 1.5mm 2.0mm |
| Thickness | 1.8m 2.1m 2.3m 2.5m or as your request |
| Peach post | |
| Size | 50*70mm 70*100mm |
| Thickness | 0.8mm 1.0mm 1.2mm |
| height | 1.8m 2.1m 2.3m 2.5m or as your request |
Common Colors:
Moss green (RAL6005),
Pure white (RAL9010),
Stone grey (RAL7030),
Traffic red (RAL3020),
Traffic yellow (RAL1023), and Traffic blue (RAL5017).
Besides, other RAL color required can be delivered to us.
