Safety steel screen metal 358 security mesh anti cut for airport prison

Safety steel screen metal 358 security mesh anti cut for airport prison
Safety steel screen metal 358 security mesh anti cut for airport prison

Large Image :  Safety steel screen metal 358 security mesh anti cut for airport prison

Product Details:

Place of Origin: Anping Hebei China
Brand Name: Alon
Certification: SGS
Model Number: DQ-WF9

Payment & Shipping Terms:

Minimum Order Quantity: 100 sets
Price: negotiable
Packaging Details: as clients require
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000 sets per week
Detailed Product Description
Product Name: 358 High Security Fence Surface Treatment: Hot-dipped Galvanized Electro-dipped Galvanized Powder Coated (all Colors In RAL)
Connecting Sections: Iron Bar, Hexagonal Clamp And Sacrews Height: 1.0m To 6.0m (popular:2.5m And 3.0m )
Width: 1.0m To 3.0m (popular:2.2m And 2.5m ) Wire Diameter: 4.0mm To 6.0mm (the Most Popular Is 4.0mm/BWG Gauge 8#)
Hole Size: 76.2mm*12.7mm (3 Inch * 0.5inch) Post: 60mm*60mm, 80mm*60mm
High Light:

high security fence


security mesh fence panels

Safety steel scree metal 358 security mesh anti-cut for airport prison




1.product description of security fence
made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.
2. security fence specification

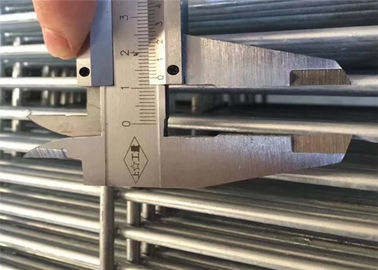

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540-690 N/m2
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colours: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.




Anti Climb Fence
Name Anti Climb Fence – 358 High Security Fence
Material Iron wire/ Stainless steel wire/ Galvanized wire
Surface treatment

Hot-dipped galvanized

Electro-dipped galvanized

Powder coated (all colors in RAL)

Connecting sections Iron bar, hexagonal clamp and sacrews
Height 1.0m to 6.0m (popular:2.5m and 3.0m )
Width 1.0m to 3.0m (popular:2.2m and 2.5m )
Wire diameter 4.0mm to 6.0mm (the most popular is 4.0mm/BWG gauge 8#)
Aperture / Hole size 76.2mm*12.7mm (3 inch * 0.5inch)
Post 60mm*60mm, 80mm*60mm
























1. Beautiful appearance :With smooth surface, the transverse four bend
stiffener, at the same time in the overall cost of the few make the mesh surface strength and aesthetic feeling increased significantly, also two dimensional stereo feeling, clairvoyant rate is higher
2. Anti-cut:Wire and welded joints,small mesh size make cutting very difficult.
3. Anti theft :Mesh size is only 12.7 mm * 76.2 mm, to ensure that valuable
things are not handed out from the mesh, and have very good security isolation effect.

4.Better visibility:flat,two- dimensional profile, easier to see through than
chain link.
5.High strength:The fence panel with high welded strength to prevent bending down
6. Sturdy and durable:Galvanized steel wire, PVC coated processing, not only plays the protection and beautiful, at the same time to ensure the maximum level of strong and durable




1.Psychiatric hospital security fencing

2.Sub-station security fencing.
3.Prison security fencing

4.Bridge anti-climb guarding & guard safety screening
5.Factory machine guards
6.Shipping Port Security fencing

7.Gas pipelines security fence
8.High security living area and private field fence.
9.Electrical sub-station fencing

10.Walkway security fencing
11.Airport security fencing
12.Balustrades Security Fence


Safety steel screen metal 358 security mesh anti cut for airport prison 0
