Temporary Fence Panel , Crowd Control Barrier, Vineyard Metal Post
Product Details:
Payment & Shipping Terms:
|
Materials: | Q195 Iron Wire | Application: | Constructing Or Event |
---|---|---|---|
Mesh: | 50X10mm , 50X150mm , | Diameter: | 3mm . 4mm 4.5mm |
Height: | 1.8meter. 2.2meter | Pipe: | 38MM. 40MM 42mm |
Feature: | Easily Assembled | Port: | Xingang |
Certification: | ISO9001:2008 | Base Plate: | 600x220x150mm |
High Light: | temporary fence panels,security fence panels |

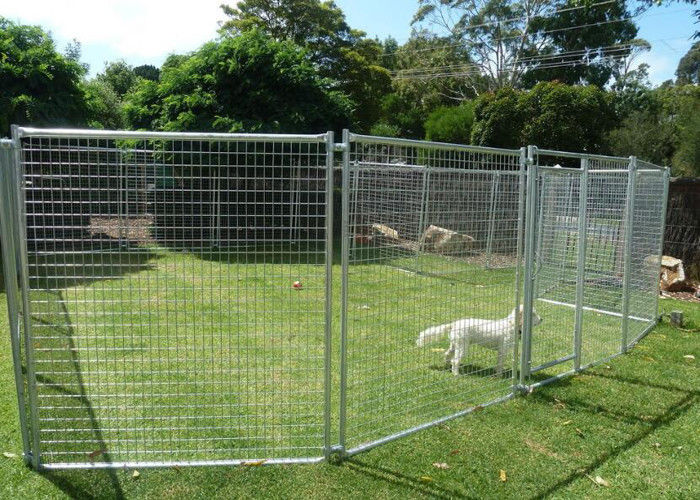

New Zealand Types Of Constructions Site Use Temporary Fencing Panel
The temporary fence panels usually stand 2100mm high and 2400mm wide. These panels and mesh are
hand welded with superior quality 4.0mm mild steel wire for optimum strength and are hot dipped
galvanized for durability.
The temporary fence panels comply with Australian Standard AS 4687-2007, when used in conjunction with
temporary fence plastic feet (infilled with concrete) and clamps.
Application:
1 Temporary fence panel to secure construction sites and private property.
2 Temporary fencing panel of residential housing sites.
3 Temporary fencing panel and crowd control barriers for major public. events, sports, concerts, festivals,
4 Temporary fence panel safety fencing for swimming pools
.
Temporary Fence | |
Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as request |
Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc |
Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as request |
Plastic Feet | 600*220*150mm, or 580*245*130mm |
Surface Treatment | Hot-dipped galvanized or electric galvanized,PVC coated |
Part | Welded mesh Panel, Square Tube Frames,Plastic feet Clamp,StaySupport |
Temporary Fence Panel Packing
1. Fence panel:
The Fence panel packing have some mat on the bottom of the fence panel pallet to keep the bottom panel
The Panel Packing has 4 metal corner around the panel pallet, let it be more strong. It can't be destroyed
The Packing have iron plate under the plastic bandage, or if the work pack the pallet,
The Packing Panel have wood plate on the top of the fence panel, to avoid the above pallet will be
destroyed the under pallet panel.
2. Fence Feet
Every fence feet is covered by cap then with plastic film, then metal pallet.
3. Clip: Plastic film+carton box.
Australia Temporary Fence Common Size | |
Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as request |
Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc |
Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as request |
Plastic Feet | 600*220*150mm, or 580*245*130mm |
Surface Treatment | Hot-dipped galvanized or electric galvanized |
Part | Welded mesh Panel, Round Tube Frames,Plastic feet Clamp,StaySupport |
